15m Active Optical HDMI 2.1 Cable | 8K 60Hz | 4K 120Hz | 48Gbps

Built for Long-Distance HDMI Installations

Traditional HDMI cables become more susceptible to signal degradation as cable length increases.

Active Optical HDMI technology uses fibre optics to transmit the high-speed video signal while retaining copper conductors for lower-speed communication signals.

Benefits include:

✔ Reliable 15m performance

✔ Full HDMI 2.1 bandwidth

✔ Supports 8K 60Hz

✔ Supports 4K 120Hz gaming

✔ Resistant to EMI/RF interference

✔ Lightweight compared to many long copper cables

✔ Ideal for concealed installations

For long cable runs, Active Optical technology is specifically designed to maintain signal integrity where conventional HDMI cables may struggle.

Ready for Today's Highest Performance Devices

Perfect for connecting:

✔ PlayStation 5

✔ Xbox Series X

✔ Gaming PCs

✔ 8K TVs

✔ 4K 120Hz displays

✔ AV receivers

✔ Projectors

✔ Media players

Supports:

✔ HDR

✔ eARC

✔ HDCP

✔ Dolby-compatible audio formats

✔ HDMI 2.1 up to 48Gbps bandwidth.

Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable, but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. The hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires.

• Meets all HDMI 2.1 specification requirements which include: High Dynamic Range (HDR) video
• Bandwidth up to 48Gbps
• 8K 4K 120HZ
• Up to 32 audio channels for a multi-dimensional immersive audio experience
• Up to 1536kHz audio sample frequency for the highest audio fidelity
• Simultaneous delivery of dual video streams to multiple users on the same screen
• Simultaneous delivery of multi-stream audio to multiple users (Up to 4)
• Support for the wide angle theatrical 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions provide more expanded command and control of consumer electronics devices through a single control point
• EMI/RF free for clear signal transmission
• Hybrid construction - multimode fibre for high-speed TMDS, copper for low frequency control signals
• Active Optical Cable (AOC)

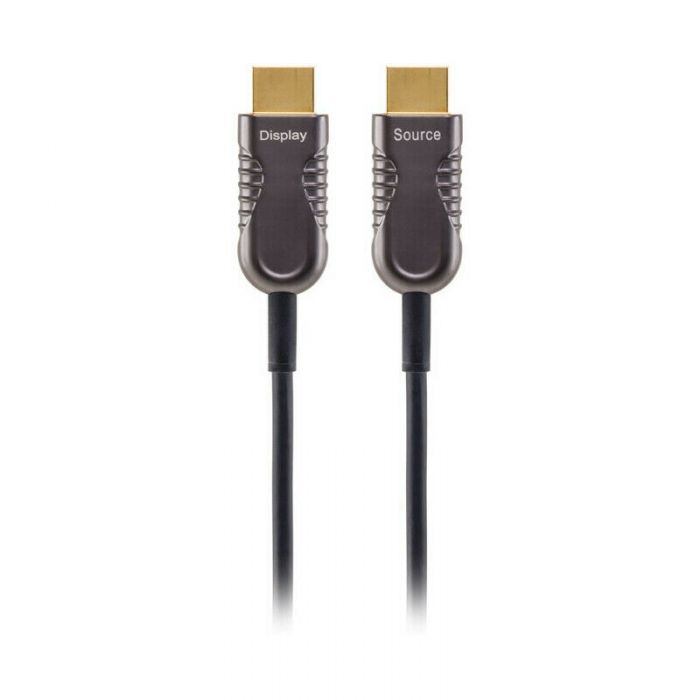

• Active cables generally feature a uni-directional design. The cables feature a Display (for TV, monitors etc) and Source (DVD, media, Blu-ray player etc.) label on each connector end.
• HDMI 2.1
• Data Rate 48Gbps
• Video Format 8K/4K/3D/1080p/720p @120Hz
• Additional Features HDCP/EDID/CEC/DDC/Audio
• Operating Temperature 0 to 70 degrees

• Supply Voltage 5.0 V

✔ HDMI 2.1 compliant

✔ 48Gbps bandwidth

✔ Supports 8K and 4K/120Hz

✔ Active Optical Fibre technology

✔ EMI/RF resistant

✔ Designed for long-distance HDMI runs

✔ Fast Australian dispatch

Why use an Active Optical HDMI cable instead of a standard HDMI cable?

Active Optical HDMI cables are specifically designed for longer cable runs, using fibre optics to carry the high-speed signal while maintaining HDMI 2.1 performance over greater distances.

Is this cable directional?

Yes. One connector is labelled Source and the other Display. The cable must be installed in the correct direction.

Will this support PlayStation 5 or Xbox Series X?

Yes. It supports HDMI 2.1 features including 4K at 120Hz, making it suitable for compatible gaming consoles and displays.

Can I install this inside a wall or ceiling?

Yes. It's well suited to concealed AV installations. It's recommended to test the cable before permanently installing it and to avoid sharp bends during installation.
